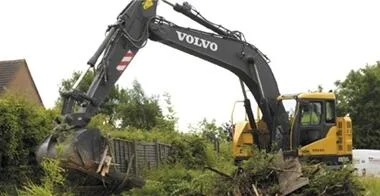

Caption: Volvo ECR235CL Crawler Excavator in jobsite field operations
Hydraulic ExcavatorVolvo ECR235CL
Large Excavator (25 - 50t) · Crawler Chassis
Operating Weight25.4 T Class
25,433 kg
≈ 56,070.1 lbs
Max Dig DepthGround Reach
5.73 m
≈ 18.8 ft
Net Engine PowerCrawler
147 HP
≈ 110 kW
Advertisement
[ Ad Slot: model-mid-banner ]
Authentic In-Field Operation Footage
Real-world Volvo ECR235CL jobsite telemetry & machine handling demonstration
Channel: Heavy Equipment Chicago
Engine & Powertrain
- Engine Make / Model
- D6E EAE3
- Net Power
- 147 HP (110 kW)
- Gross Power
- 165 HP
- Displacement
- 5.7 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulic Flow
- Operating Weight
- 25,433 kg
- Weight (lbs)
- 56,070.1 lbs
- Hydraulic Flow
- 401.3 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 1.22 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 5.73 m (18.8 ft)
- Max Reach (Ground)
- 9.73 m
- Max Dump Height
- 7.88 m
- Shipping Width
- 3091 mm
- Shipping Height
- 3082 mm
