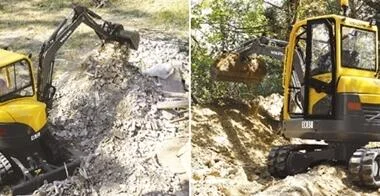

Caption: Volvo ECR38 Crawler Excavator in jobsite field operations
Mini ExcavatorVolvo ECR38
Mini Excavator (2 - 6t) · Crawler Chassis
Operating Weight3.3 T Class
3,336 kg
≈ 7,354.6 lbs
Max Dig DepthGround Reach
2.79 m
≈ 9.2 ft
Net Engine PowerCrawler
27 HP
≈ 20 kW
Advertisement
[ Ad Slot: model-mid-banner ]
Authentic In-Field Operation Footage
Real-world Volvo ECR38 jobsite telemetry & machine handling demonstration
Channel: C&C Equipment
Engine & Powertrain
- Engine Make / Model
- D1.6
- Net Power
- 27 HP (20 kW)
- Gross Power
- 27.6 HP
- Displacement
- 1.64 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulic Flow
- Operating Weight
- 3,336 kg
- Weight (lbs)
- 7,354.6 lbs
- Hydraulic Flow
- 94.3 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 0.15 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 2.79 m (9.2 ft)
- Max Reach (Ground)
- 5.15 m
- Max Dump Height
- 3.33 m
- Shipping Width
- 1622 mm
- Shipping Height
- 2441 mm
